Multifunctional corn thresher for corn, millet, sorghum

The multifunctional corn thresher is a modern agricultural machine with wide applications and high efficiency. Its main function is to thresh grain quickly and efficiently. This corn thresher is not only suitable for corn, but also for other grains such as wheat, sorghum, and soybeans. Its production capacity can reach 2-6t/h, the threshing rate can reach 98% and the breakage rate is less than 1.5%.

This grain thresher has been a popular choice among customers in various regions, including Ethiopia and Nicaragua. Customers who have purchased it have consistently praised its high efficiency.

Parameters of multifunctional thresher

This corn threshing machine mainly has two models: 5TD-1000 and 5TYM-850. The 5TD-1000 can be equipped with diesel engine, electric motor, and PTO. The 5TYM-850 can be equipped with diesel engine and electric motor.

Parameters of the 5TD-1000 multifunctional thresher：

แบบอย่าง	5TD-1000
พลัง	15hp diesel engine, 11kw motor, PTO
ความจุ	0.5-4t/h
น้ำหนัก	650กก
Overall size	3400mm*2100mm*1980mm

Parameters of the 5TYM-850 multifunctional corn thresher：

แบบอย่าง	5TYM-850
พลัง	5.5-7.5kw motor, 15hp diesel engine
ความจุ	4-6t/h
น้ำหนัก	326kg
Overall size	2300mm*1300mm*1100mm

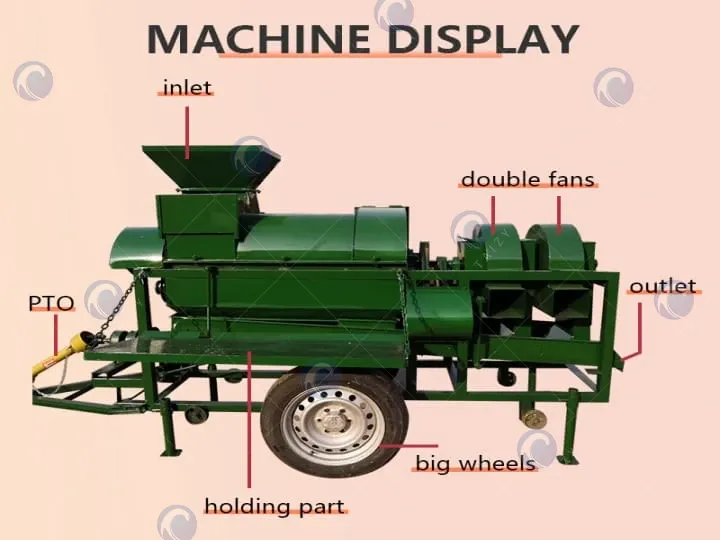

Structure of corn thresher machine

The multifunction maize thresher machine has a compact structure, which is mainly composed of inlet, outlet of corn cob, outlet of corn geed, fan, etc. In addition, it can also be equipped with a traction frame and big wheels, which can pull the machine to where you need it for threshing.

Advantages of multi purpose threshing machine

• การใช้งานที่กว้างขวาง: Compared to traditional เครื่องนวดข้าวโพด, multifunctional threshers have a wider range of applications. They can be used for corn, sorghum, rice, millet, wheat, soybeans, and other grains. A single machine can thresh a variety of grains.
• High threshing quality: This multifunctional millet thresher achieves a threshing rate exceeding 98%, with a breakage rate of less than 1.5%, ensuring grain integrity and minimizing grain loss.
• ใช้งานง่าย: Multifunctional crop threshers are typically simple in design and easy to operate, allowing users to quickly master the process. Single-person operation is possible, eliminating the need for specialized technicians.
• Manpower savings: Compared to traditional manual threshing, multifunction maize thresher can significantly reduce labor intensity, especially in large-scale farmland operations, saving significant manpower.

Application of multifunction corn thresher

Grain threshing machine is widely used, not only for corn, but also for various types of grains such as wheat, soybeans, millet, sorghum, and rice.

Installation and use of the multifunctional corn thresher

• To facilitate transportation, we minimized the size of the machine and disassembled some components for shipment. When in use, reassemble according to the schematic diagram.
• Before operation, carefully check all fasteners for looseness, the flexibility of rotating parts, and the presence of foreign objects in the fan drum. Turn the belt to check for any friction or collision, then run the machine at no load. Only start the machine after confirming that everything is functioning normally.
• Before each operation, fully grease the bearings and fill the diesel engine with sufficient oil. Idle for a few minutes and wait until it is functioning normally before feeding.
• Excessive speed is strictly prohibited to prevent accidents.
• While the machine is running, do not reach into any rotating parts to adjust, troubleshoot, or inspect the machine.
• The corn should not be too wet during operation.
• After operation, clean the machine interior and lubricate and maintain all lubricating parts. When not in use for an extended period, store it in a dry, ventilated place protected from rain and moisture.

Successful case of multifunctional corn thresher

Taizy multifunctional threshing machine has been favored by customers all over the world due to its excellent advantages. A customer in Nicaragua ordered five 5YTM-850 corn threshing machines.

The client owns a farm where he grows a variety of crops. In order to improve the threshing efficiency of various grains, he consulted us about this machine. After many rounds of communication, the customer ordered five 5YTM-580 multifunction threshers. Upon receiving the machines, the customer immediately put them to work threshing and expressed his satisfaction. He commented that the machines not only improved his productivity but also significantly saved him time and manpower.

Contact us now!

Whether you’re looking to improve grain threshing efficiency or expand into new agricultural sectors, multifunctional crop threshing machine is an essential tool. As the most trusted supplier of corn threshers in the industry, our company prioritizes product quality and customer satisfaction. We manufacture and sell our machines in-house, offering competitive pricing. If you’d like to learn more or are interested in this machine, please feel free to contact us!
