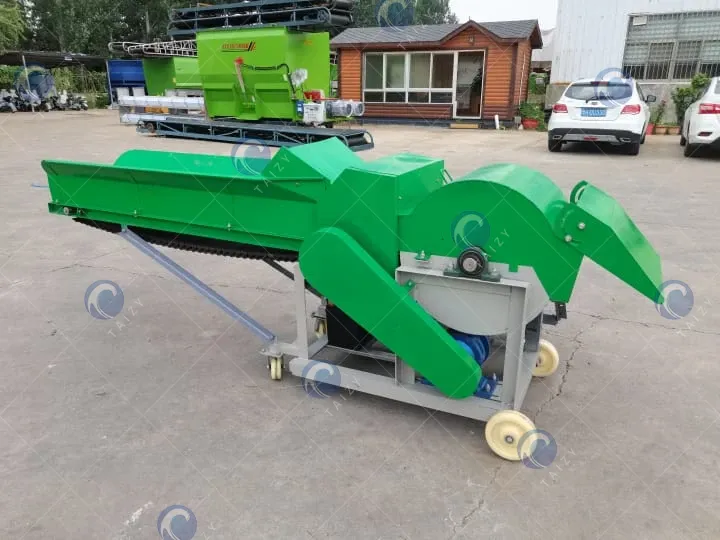

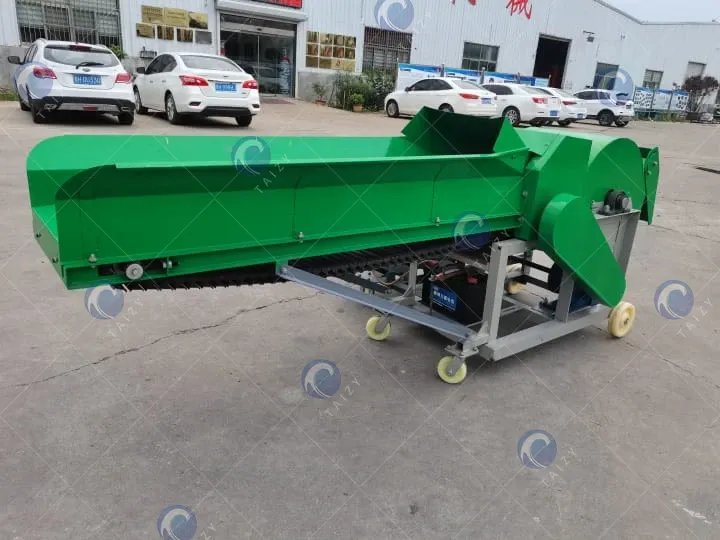

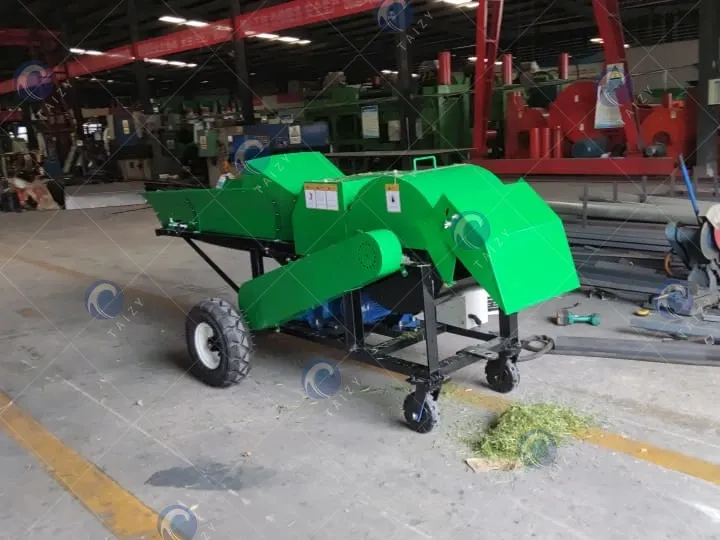

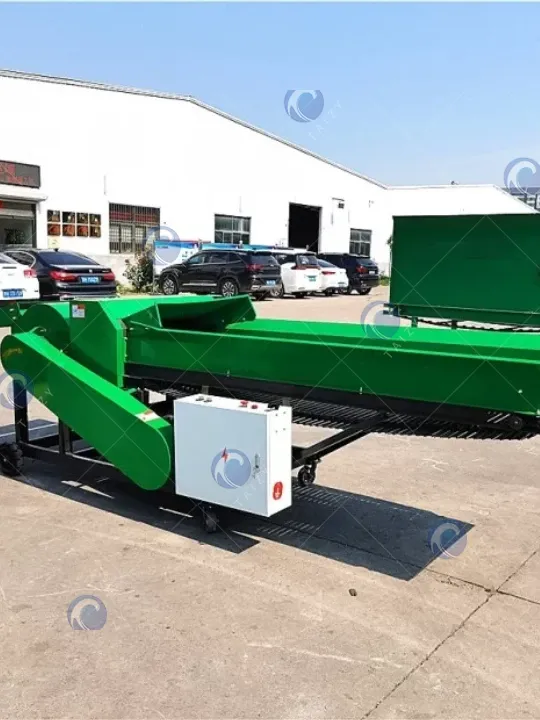

Silage cutting machine for feed processing

Taizy silage cutting machine is used to crush the hay, grass, maize stalk, sorghum straw, alfalfa, mapier, and other grass into fine pieces. The finished product has a length of 10-180 mm and a width of less than 10 mm.

We offer a variety of chaff cutter machines with a capacity ranging from 4 to 15 tons per hour. Taizy chaff cutting machine is ideal equipment for forage processing for medium to large-scale livestock farmers. If you are looking for the high-efficiency forage cutting machine, contact us now for the best quote.

Superior features of chaff cutter machine

• Fine finished product: The processed forage has fine, soft fibers, significantly improving palatability and making it easier for cattle, sheep, horses, chickens, ducks, rabbits, and other animals to digest.
• Wide applications: Taizy silage shredder machine can cut and pulverize various forage materials, including hay, corn stalks, sorghum, and silage. It’s a multi-purpose machine suitable for various livestock farming scenarios.

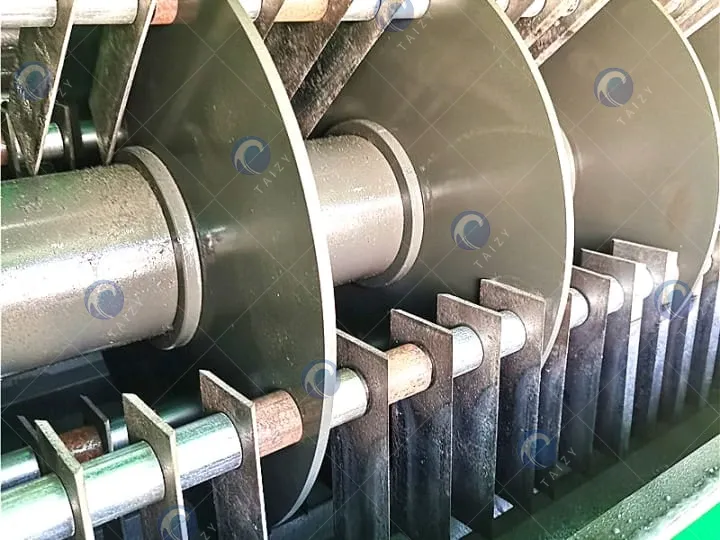

• Long service life: Our silage cutting machine uses a thickened hammer blade design, which is hard, wear-resistant, and not easily damaged, while also having a long service life, significantly reducing maintenance costs.
• High efficiency: Taizy chaff cutter is characterized by high processing efficiency, with a production capacity of up to 15 tons per hour.
• Stable structure: The hay cutting machine has a robust design and strong long-term operational stability, ensuring continuous and efficient production.
• Easy operation: Our chaff chopping mahcine has a clear structure, is easy to operate, and requires simple daily maintenance, making it suitable for various users.

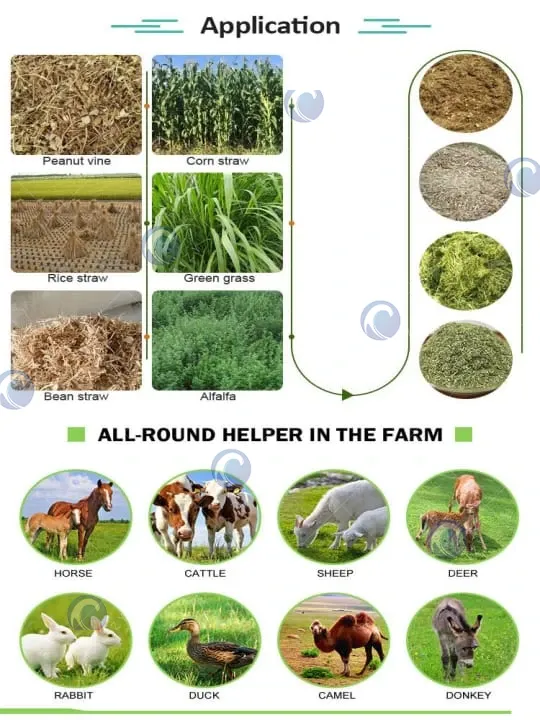

Silage cutting machine application scenarios

Our chaff cutter machine can process a variety of crop straws and forage materials, including hay, corn stalks, wheat straw, sorghum stalks, rice straw, peanut vines, reeds, pasture grass, silage, and almost all common fibrous forage materials.

The silage cutter machine can process these materials into fine grass, making the fibers soft and of uniform length, easy for animals to eat. The machine is widely used for forage processing in livestock farms for cattle, sheep, horses, and rabbits, and is also suitable for the pretreatment of silage.

Structure of grass cutting machine

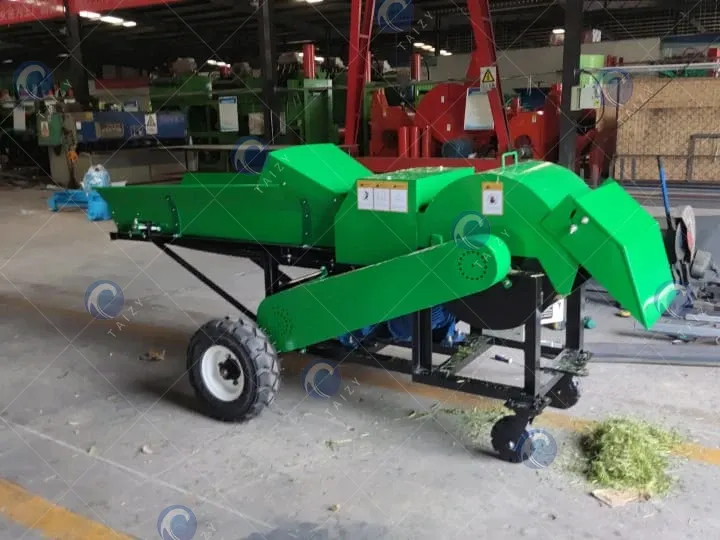

The silage cutting machine consists of several key components that work together. The main structure includes an automatic feeding device, rotor, motor, frame, hammers, and wheels.

How does grain straw cutter machine work?

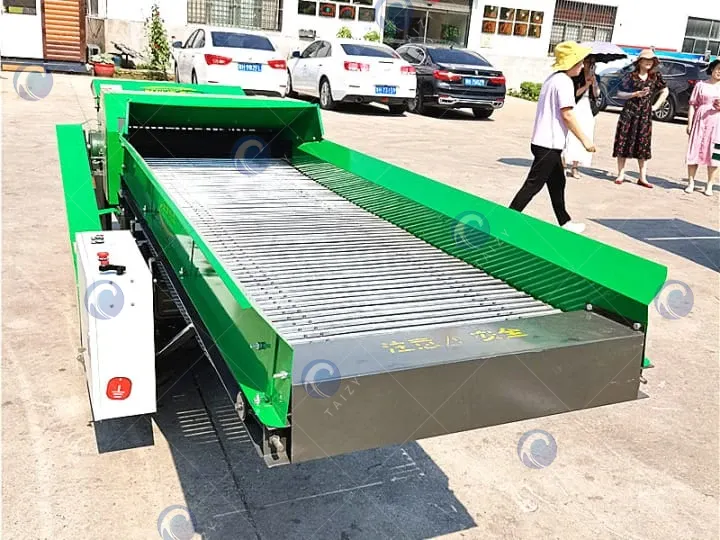

After starting the silage cutting machine, allow the rubbing rotor to run stably before activating the automatic feeding device. Workers spread the straw on the feeding chain plate, which automatically feeds the straw into the machine.

Once the straw enters the rubbing drum, it is continuously struck, torn, and rubbed by the high-speed rotating hammers, gradually turning it into fine, long filaments. Finally, the rubbed straw is ejected from the machine under centrifugal force, completing the processing.

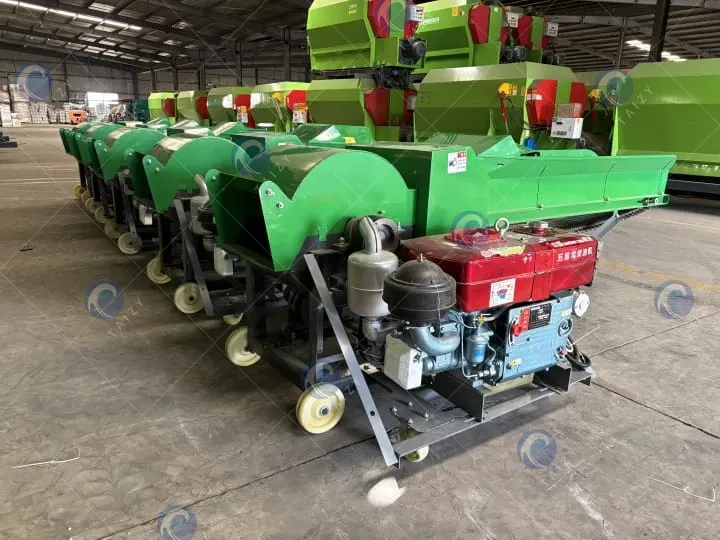

Detailed information of silage shredder machine

We offer various models of silage cutting machines with outputs ranging from 4 to 15 tons per hour. Specific specifications are shown below.

Item	9RSZ-4	9RSZ-6	9RSZ-10	9RSZ-15
Power	7.5kw	15+2.2kw	22+3kw	30+5.5kw
Speed of main shaft	2860r/min	2860r/min	2860r/min	2100r/min
Capacity	4t/h	6t/h	10t/h	15t/h
Blades quantity	32pcs	40pcs	48pcs	64pcs
Width of feeding Tray	240mm	300mm	500mm	800mm
Throwing distance	≥2300mm	≥2300mm	≥2300mm	≥2300mm
Dimension(L*W*H)	2000*750*800mm	3000*900*1050mm	3600*930*1240mm	4200*1170*1250mm
Weight	300kg	980kg	1100kg	1400kg

Factors affecting the price of chaff chopper

The price of the silage cutting machine is affected by a variety of factors, including the machine’s output, whether it is equipped with an automatic feeding device, the thickness of the machine body material, and the motor power configuration.

Furthermore, differences in craftsmanship, quality, and after-sales service among different manufacturers will directly affect the final price. Generally speaking, higher configurations, greater output, and more durable materials will result in a higher price.

Success case of Taizy silage cutting machine

Our 9RSZ-6 chaff cutter was successfully exported to Nigeria. The customer, a large-scale cattle and sheep farm, ultimately chose our equipment after comparing several suppliers. After the machine was put into use, the customer was very satisfied with its quality and processing efficiency.

Contact us immediately for detailed quote！

9RSZ series silage cutting machine, with its efficient and stable processing capabilities, has become the ideal choice for many farms and forage processors.

If you are looking for a more comprehensive forage processing solution, we also offer complete sets of equipment, including silage harvester and forage baler machine, which can be configured to meet your specific needs. Feel free to contact us anytime for professional consultation and equipment quotes!
